CCS CHAdeMO EV Charger

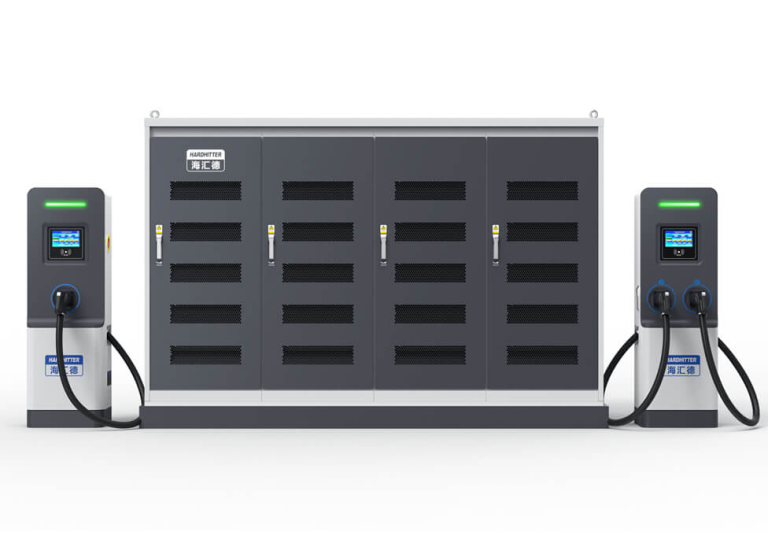

The EVMS-60 is a CCS EV charging station able to charge all current and next generation vehicles with 50/60kW CCS, CHAdeMO and AC Type 2. EVMS-150, a CCS rapid charger for E-Bus and Luxury EVs. CCS 150 kw EV charger is a DC rapid charger to charge any CCS Compatible Bus or Vehicles with 150kW.

Application: highway rest stops, petrol stations, EV dealers, busy urban areas, etc. Compatible car brands: BMW, Volkswagen, GM, Porsche, Audi, Nissan, Mitsubishi, Peugeot, Citroen, Kia, Renault, Daimler, Tesla, Smart, Mercedes

High efficiency and energy saving

Modular structure, with higher reliability and flexibility;

Effiency ≥ 95%, low energy consumption;

Noise is low and has little impact on the surrounding environment;

Flexible configuration

Flexible multi-protocol design of ev charging pile: CCS 2, CHAdeMO GB/T and AC TYPY 2;

Support two-gun charge at the same time or in turn.

Support customization to meet the diverse needs of different customers.

Intelligent interaction

CCS ev charger supports multi language operation;

Daylight readable touch screen display;

Support OCPP1.6J

EV DC Fast Charger types

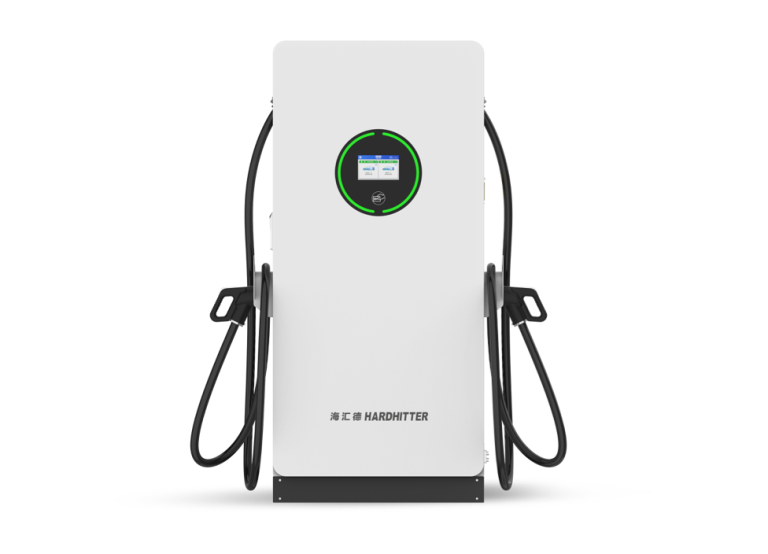

EVMS-60

two DC guns charge at the same time or in turn

60KW

400-1000VDC

900*525*2000(W*D*H)mm (two guns)  1000*525*2000(W*D*H)mm (three guns)

EVMS-150

two DC guns charge at the same time or in turn

150KW

400-1000VDC

900*525*2000(W*D*H)mm (two guns)  1000*525*2000(W*D*H)mm (three guns)

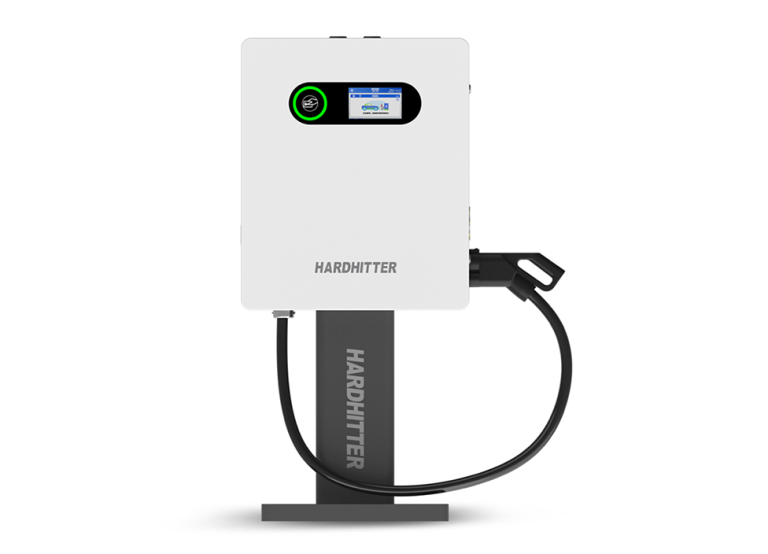

EVMS-30

30KW

Wall-mounted

300-500VDC&600-1000VDC

Specifications of EV Charging Stations

Model/CapacityEVMS-60; 60kW
AC inputRated voltage400VAC
Frequency50/60HZ
PF>0.99
DC outputVoltage range150-1000VDC
AC outputRated voltage/
Nominal power/
OthersEfficiency95%
Operation temperature-35ºC-60ºC(-20ºC~-35ºC,need heating)
 Relative humidity
Protection degreeIP54,IK10
Noise<55dB
Compliance and safetyCE, EN61851, EN62196, DIN70121, ISO15118
